Army Combat Uniform (ACU)

The Army Combat Uniform features an additional identity hiddenSelection that can be used to assign rank tabs and name patches to important characters in a scenario, or just for greater personalisation.

While the RHS EULA stipulates that we cannot permit users to publish re-textures the ACU uniform itself (i.e. changing the camo pattern), config.cpp can be written to assign a texture to the identity selection using the hiddenSelectionsTextures[] array:

hiddenSelections[] =
{
    "identity",
    "insignia"
};

hiddenSelectionsTextures[] =
{
    "path\to\custom\texture_ca.paa"
};

Otherwise, identity textures can be assigned via mission editor on a unit wearing ACU, using the setObjectTexture/setObjectTextureGlobal scripting commands with selectionNumber = 3

object setObjectTexture [3,"path\to\custom\texture_ca.paa"]

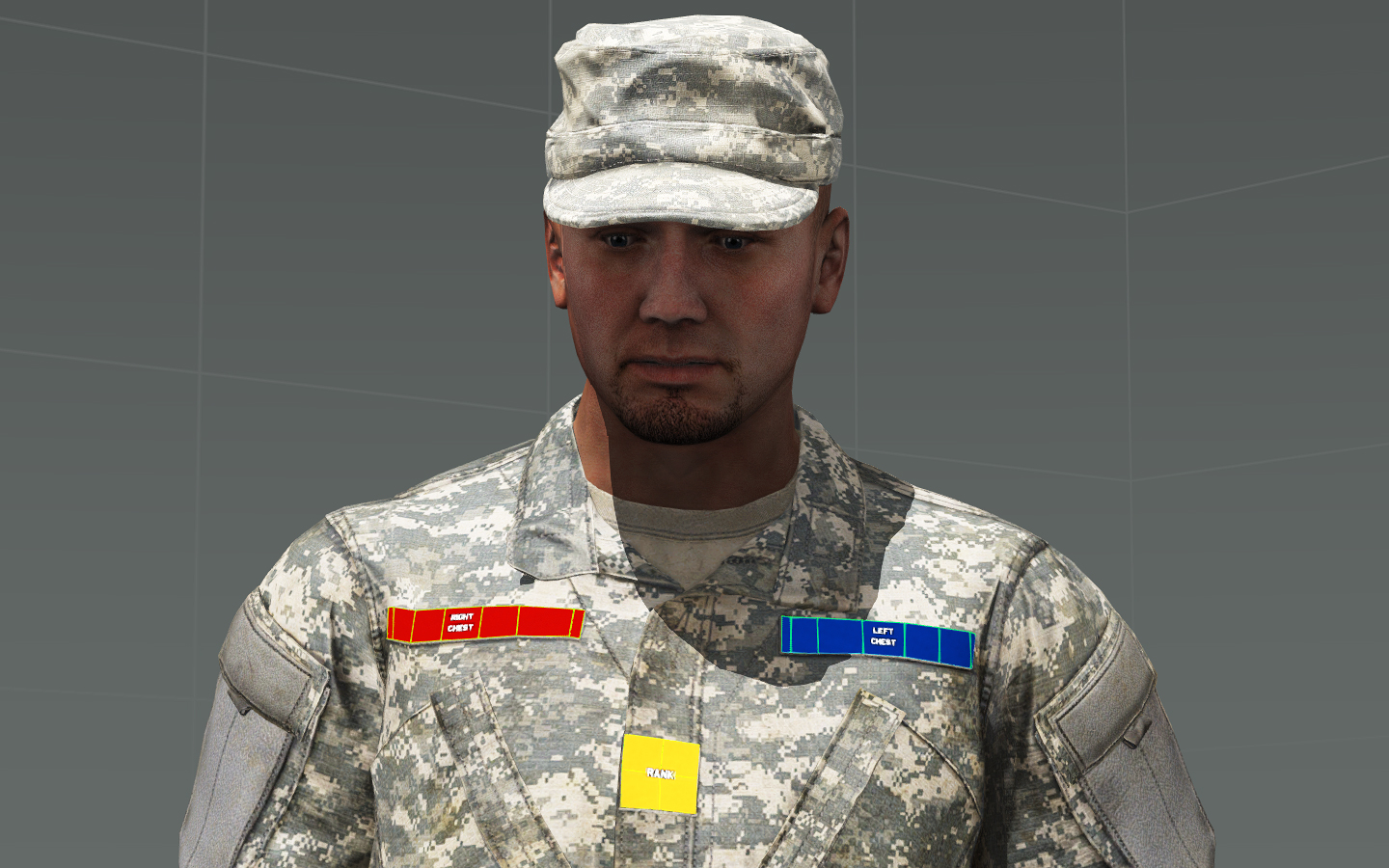

.psd templates for the identity selection are available below:

Dropbox

Google Drive

Or using a simple UV map reference image
